Techmatic supplies a range Loading Systems including:
- Small Bag Fillers
- Bulk Bag Fillers
- Mobile Bulk Tanker Loaders
- Telescopic Tanker Loaders
Small Bag Fillers are modular in design and can be fitted with various options.
Once the bag is fitted in position, clamping arms closes the bag opening to minimize dust escaping into the environment.
Loadcells ensure that the bags are loaded to the correct weight with an automatic cut-off when a set weight has been reached.
Units can be customised for non-standard bulk bag sizes.

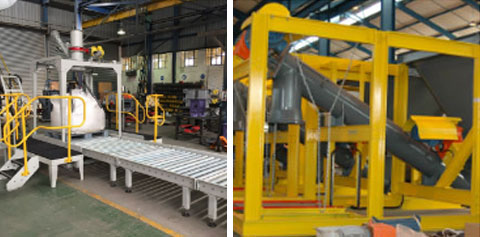

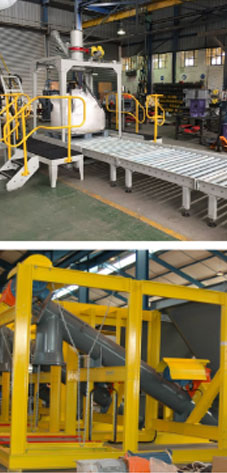

Bulk Bag Fillers are modular in design and can be fitted with various options.
Once the bag is fitted in position it is automatically inflated and then filled with material.
Loadcells in the base ensure that the bulk bags are loaded to the correct weight with an automatic cut-off when a set weight has been reached.
Optional equipment includes a bag vibrating floor to consolidate material in the filled bulk bag and a roller floor – either manual or motorised.
Units can be customised for non-standard bulk bag sizes.

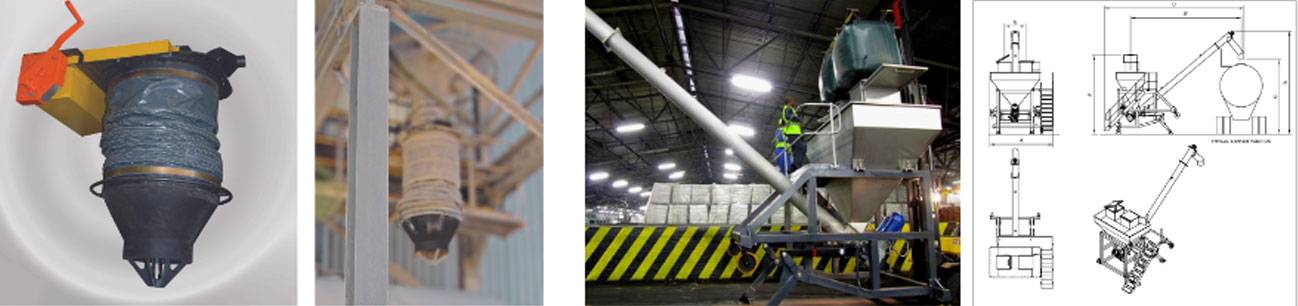

Telescopic Loaders offer excellent wear resistance against abrasion by the flowing product. This is provided by a series of internal steel cones that fit into each other as the spout is retracted. This also allows for a large degree of swing and makes positioning of the spout easy.
The robust outer PVC shroud provides a flexible dust proof cover allowing the air vented from the bulk tanker to bypass the flowing product.
A dust control suction point is provided at the top of the Telescopic Loader. Backup limit switches and slack rope limit switches allow accurate and safe actuation of the Telescopic Loader. A coupling between motor and winding drum allows for smooth stops and starts and protects the winding mechanism and motor.
Mobile Bulk Tanker Loaders are designed to assist in unloading bulk bags into standard height bulk tankers.
Very often imported chemicals, flocculants and other granular and powdered materials are imported in bulk bags. These are then transported from the harbours in bulk bags to minimize transport costs to the point of distribution.
Here the products often need to be loaded into bulk tankers for final delivery to the customer. The bulk tanker loader takes care of this reloading operation.
Two bulk bag hatches allow the operator to increase the loading speed by unloading two bulk bags at the same time. An incline screw then elevates the product to the inlet hatch of a bulk tanker.
The unit is also mobile and can be moved to a desired position as required. While standing on all four wheels the unit has a total height of 4240mm. The complete unit is then tilted upward which fixes its standing position and elevates the screw outlet to clear a standard bulk tanker at 4250mm with a total unit height of 5840mm.
